Mastercool – Nitrogen Pressure Regulator – Single Stage Regulator for HVAC/R Systems

Description

Mastercool – Nitrogen Pressure Regulator – Single Stage Regulator for HVAC/R Systems

Brief Overview:

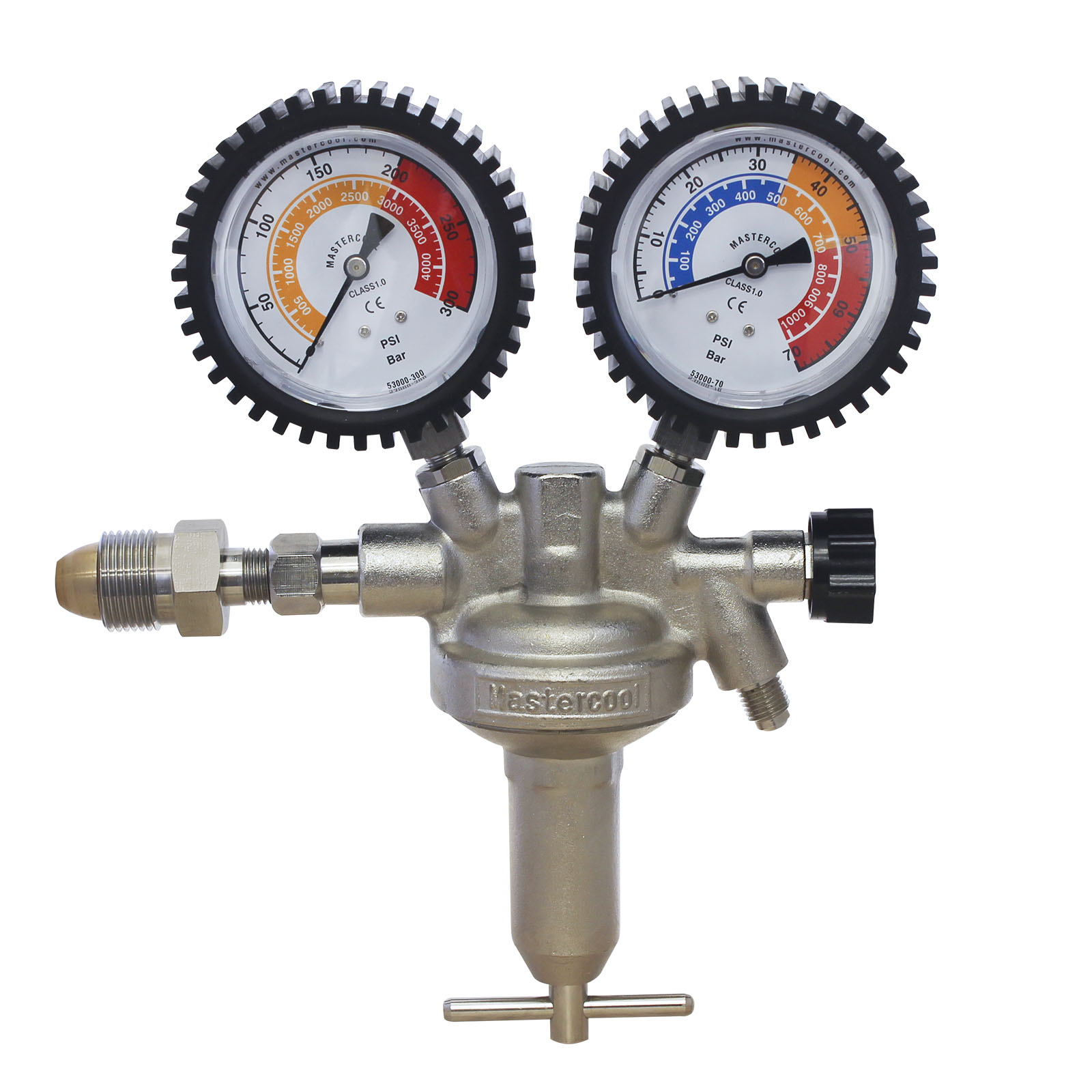

The Mastercool Nitrogen Pressure Regulator (Part/Code: MC53004) is a precision tool designed for testing HVAC/R and automotive A/C systems for leaks, especially in systems that do not contain refrigerant. This single-stage nitrogen regulator ensures accurate pressure control during leak testing, making it an essential tool for HVAC/R professionals. It features a high-pressure gauge and a low-pressure gauge for clear monitoring and is equipped with a T-handle for easy adjustment.

Key Features:

• Single-Stage Design – Ideal for leak testing systems that do not contain refrigerant.

• 1/4” SAE Flare Outlet Port – Equipped with a control valve to maintain constant pressure on the regulator.

• T-Handle for Easy Adjustment – Allows for precise pressure control with minimal effort.

• Dual Gauges – Includes a high-pressure gauge (4400 psig / 300 bar) and a low-pressure gauge (1000 psig / 70 bar) for monitoring.

• Durable Construction – 63mm (2 1/2”) gauges with protective guards for long-lasting use.

• AS2473.2 Compliant – Meets Australian specifications for nitrogen pressure regulators.

Specifications:

• Pressure Gauges: High Pressure 4400 psig (300 bar), Low Pressure 1000 psig (70 bar).

• Outlet Connection: 1/4” FL-M outlet connection.

• Gauge Size: 63mm (2 1/2”).

• Regulator Type: Single-stage nitrogen regulator.

• Material: High-quality construction with T-handle for easy pressure adjustment.

Available Options:

• MC53004 – Nitrogen Pressure Regulator for HVAC/R and automotive A/C systems.
