SUPCO – Digital Vacuum Gauge VG64 – Dual Port, High Resolution, Fast Response

Description

SUPCO – Digital Vacuum Gauge VG64 – Dual Port, High Resolution, Fast Response

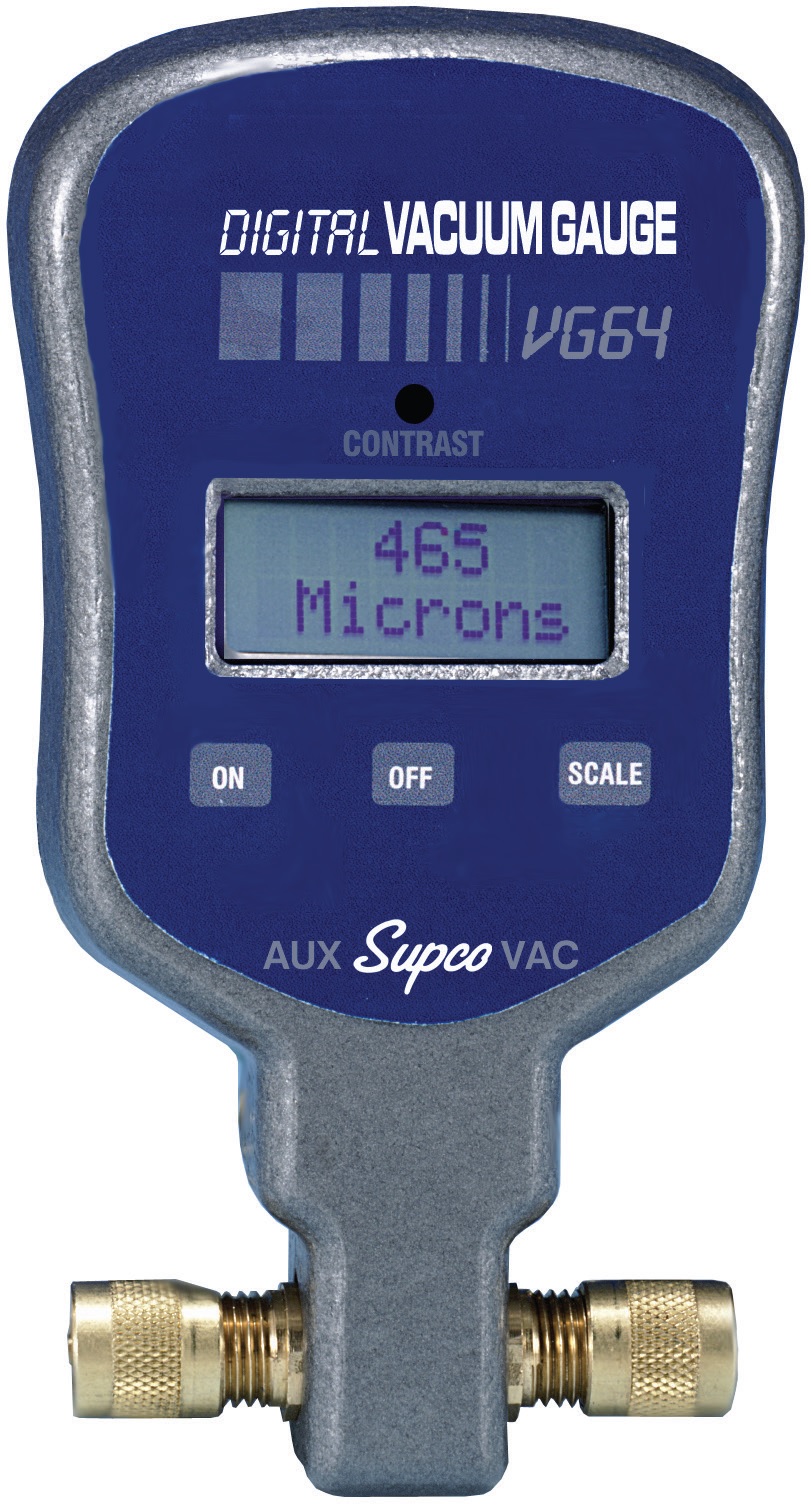

The SUPCO Digital Vacuum Gauge VG64 (Part/Code: SVG64) is a high-performance vacuum gauge designed to provide precise readings with ultra-fine resolution. This dual-port gauge updates every 1/2 second and features a convenient built-in hanger for easy storage and use. With the ability to measure vacuum in seven international units and a best resolution of 1 micron for vacuum levels ≤ 200 microns, the VG64 is ideal for HVAC/R systems and other precision vacuum applications. The gauge is easy to clean and includes a low battery indicator for convenience.

Key Features:

• Dual Port & High Resolution – Provides accurate vacuum readings with 1-micron resolution for vacuum levels ≤ 200 microns.

• Convenient Built-In Hanger – Easy to store and access when needed.

• Display Updates Every 1/2 Second – Fast response for real-time vacuum monitoring.

• Seven International Units – Measures in Microns, PSI, mBars, Pascals, Torr, mTorr, and more.

• Easy-to-Clean Sensor – Use isopropyl alcohol to clean and maintain the sensor.

• Auto Shut-Off – Automatically powers off after inactivity to conserve battery life.

• Low Battery Indicator – Alerts when the battery is low, ensuring you’re never caught off guard.

Specifications:

• Fitting: 1/4″ SAE Flare Fitting, 45° thread

• Power Source: 3 AA batteries (not included)

• Accuracy: ±10% (100-2000 microns)

• Overpressure: 800 psi max

• Operating Temperature Range: 32°F to 150°F (0°C to 65°C)

• Best Resolution: 1 micron (for 0-200 microns)

• Vacuum Range: 0-19,000 microns

• Connector Type: Standard 1/4″ male flared fitting

• Sensor Type: Thermistor

• Parameter Scale: Microns, PSI, mBars, Pascals, Torr, mTorr

Available Options:

• SVG64 – SUPCO Digital Vacuum Gauge VG64.
