TRAMEX – CDIK Concrete Determinator Inspector Kit – Complete Concrete Moisture Testing System
The Tramex Concrete Determinator Inspector Kit (CDIK) is the ultimate solution for comprehensive surface and in-situ moisture testing in concrete floors and slabs. Combining the CMEX5 digital moisture meter, Determinator probe, Hygro-i2® RH probe, and an infrared thermometer, this kit delivers accurate gravimetric-based moisture content measurements down to 100mm depth and complies with ASTM F2659 standards.
With Bluetooth connectivity to the Tramex Meters App, professionals can GeoTag, log, visualize, and share results directly from their phone. Housed in a rugged carry case with foam lining, this complete moisture testing solution is ideal for inspectors who demand precision, efficiency, and durability across flooring and coatings applications.
Key Features:
-
Kit Code: CDIK
-
Complete moisture testing for surface + in-situ concrete
-

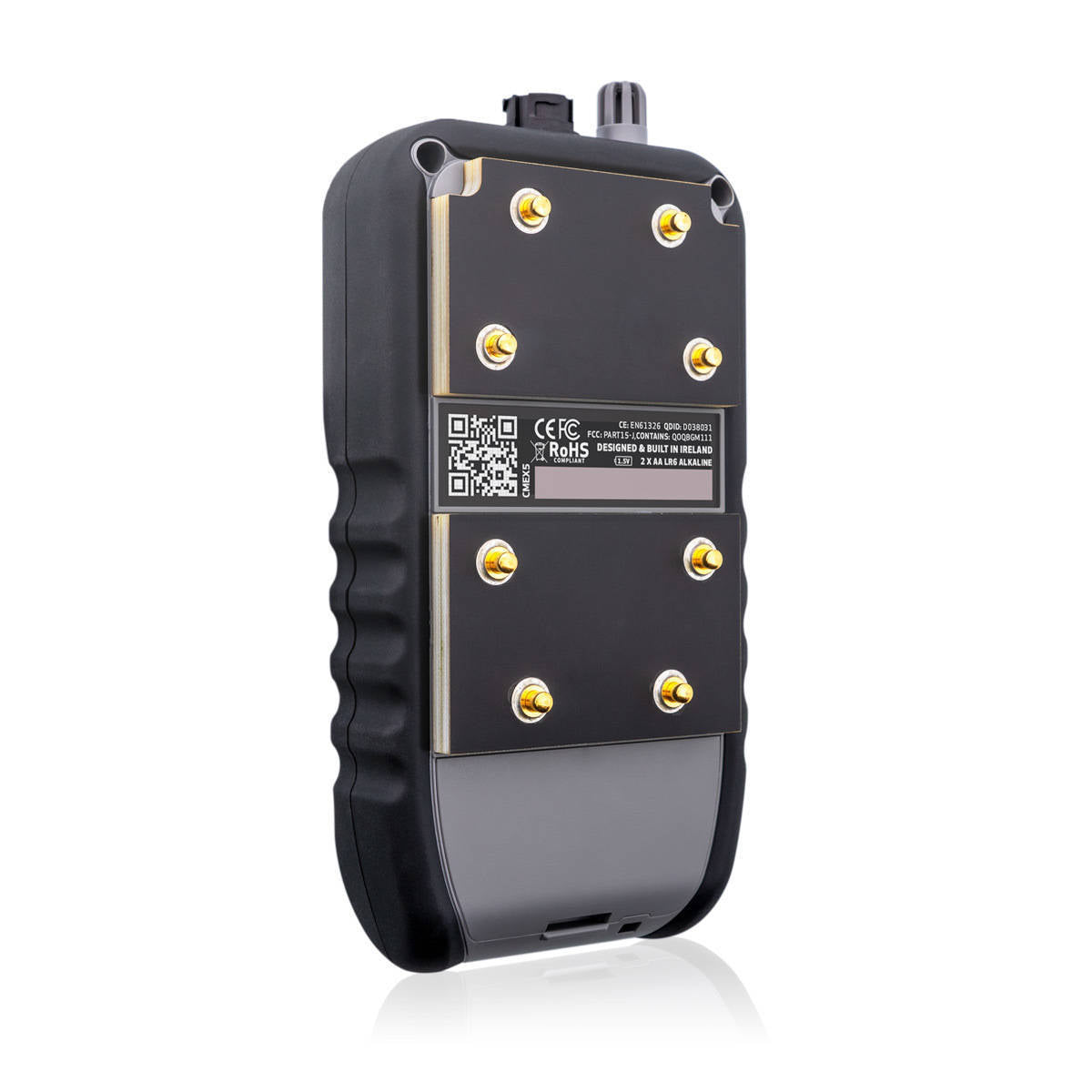

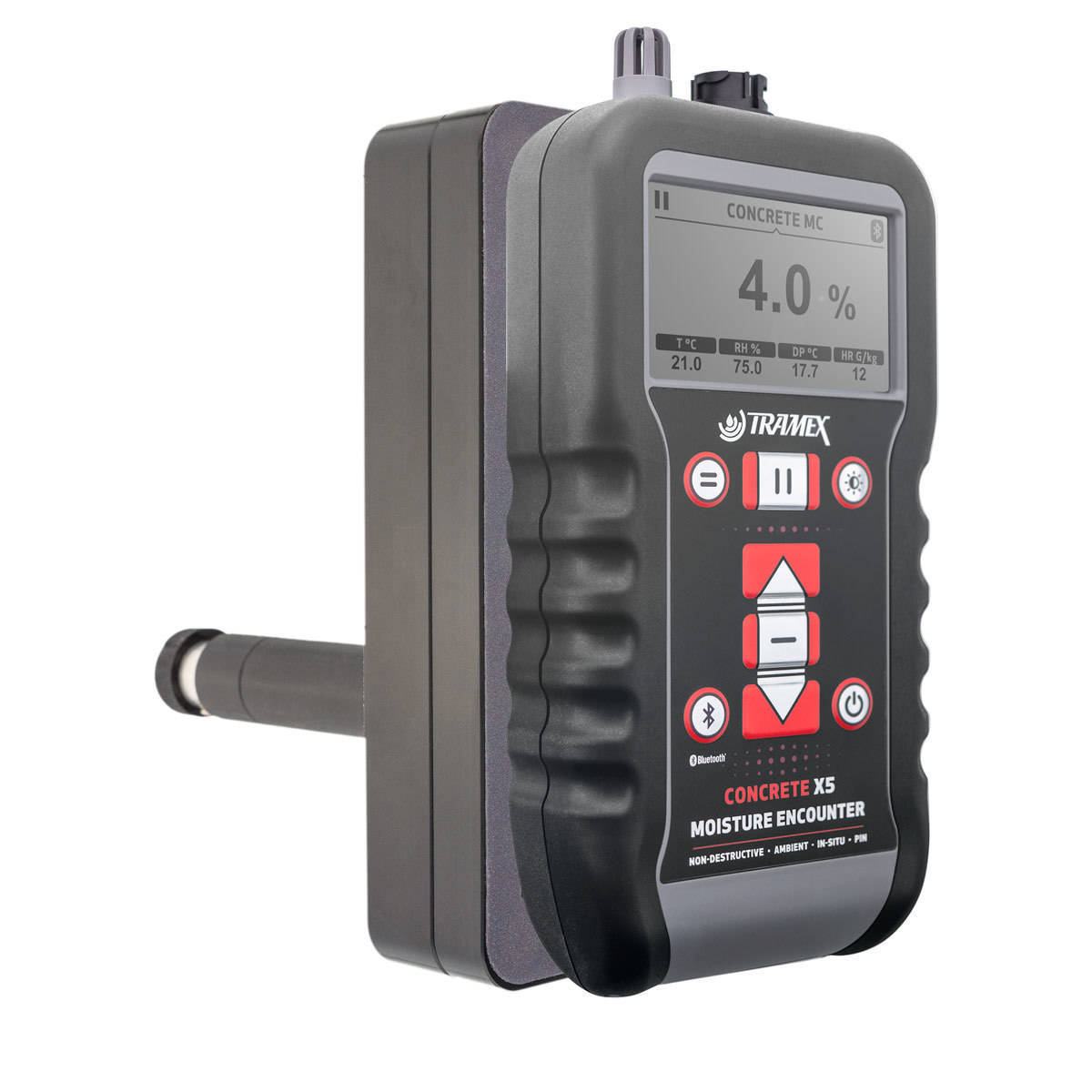

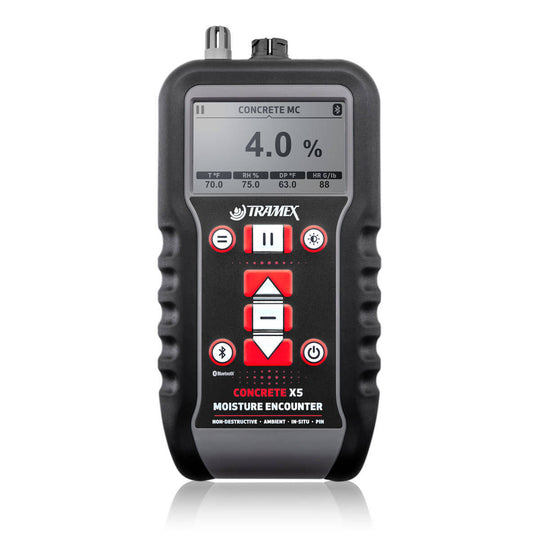

CMEX5 digital moisture meter with Bluetooth
-

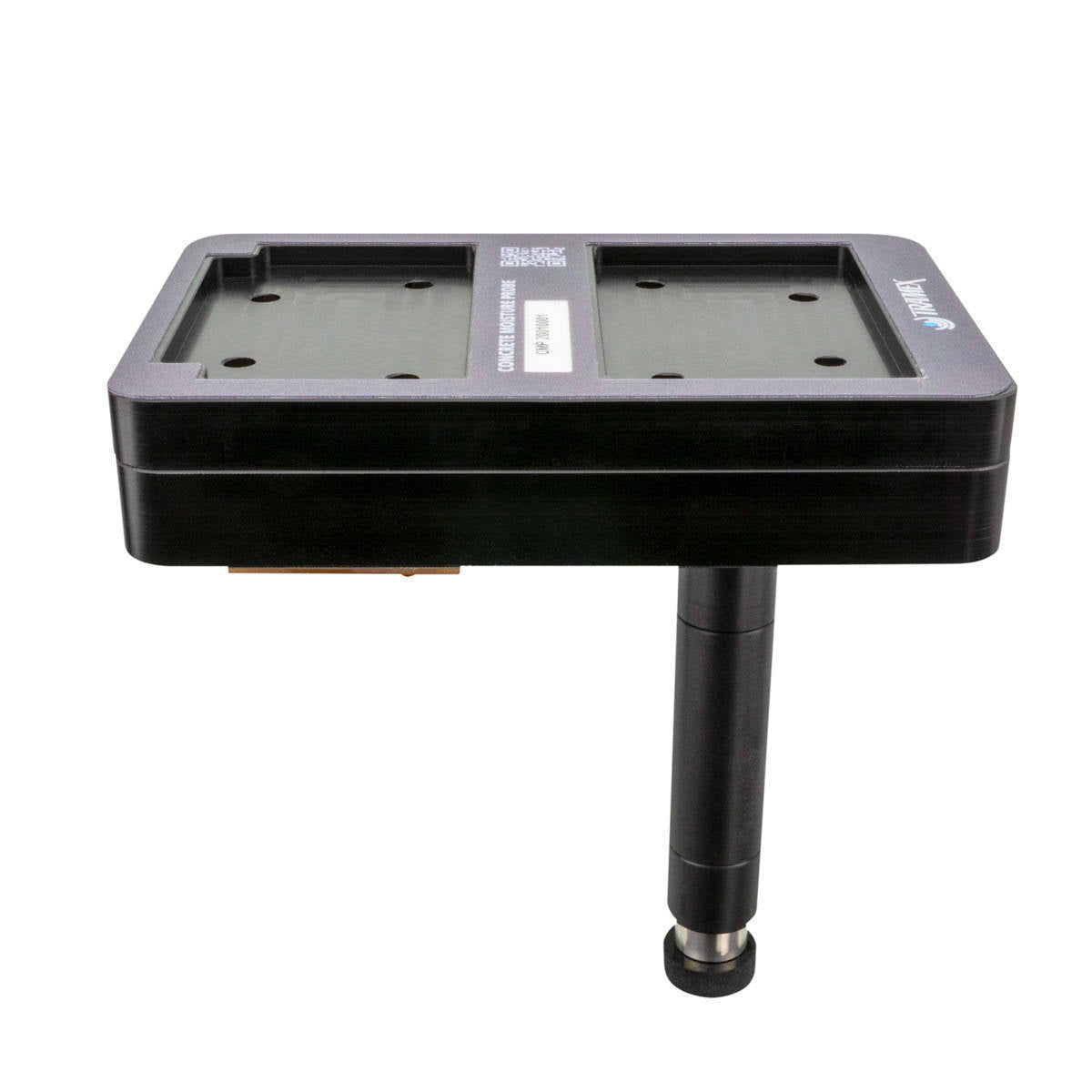

Determinator probe for deep slab analysis (up to 100mm)
-
Hygro-i2® reusable RH probe for in-situ RH testing
-
Infrared Thermometer for dew point & surface temp
-
Includes extension handle, calibration plate, and hard case
-
App-enabled reporting with GeoTagging & visualization
Specifications:
CMEX5 Measuring Range:
-
Depth of penetration: ~20mm
-
Concrete moisture: 0–6.9%
-
Gypsum screed (comparative): 0–12
-
CM Equiv: Anhydrite 0–2.7, Concrete 0–4.3
-
Reference Scale: 0–100
-
Relative Humidity (with Hygro-i2®): 0–99% ±2%
-
Wood Moisture (with optional probes): 5–30%
Determinator Probe Depths:
-
3cm: Concrete depth 5–10cm
-
5.7cm: 10–15cm
-
8.3cm: 15–22cm
-
10.8cm: 22–28cm
Infrared Thermometer IRT2:
-
Temp range: -50 to 650°C (-58 to 1202°F)
-
D:S = 12:1, Response time: 150ms
-
Adjustable emissivity, Laser Class 2
Kit Size & Weight:
-
Dimensions: 43.5cm × 36cm × 14cm
-
Weight: 3.6kg
-
Power: 2 × AA batteries, 1 × 9V PP3 battery
