TRAMEX – CDTK Concrete Determinator Tech Kit – Surface & In-Situ Concrete Moisture Testing

Description

TRAMEX – CDTK Concrete Determinator Tech Kit – Surface & In-Situ Concrete Moisture Testing

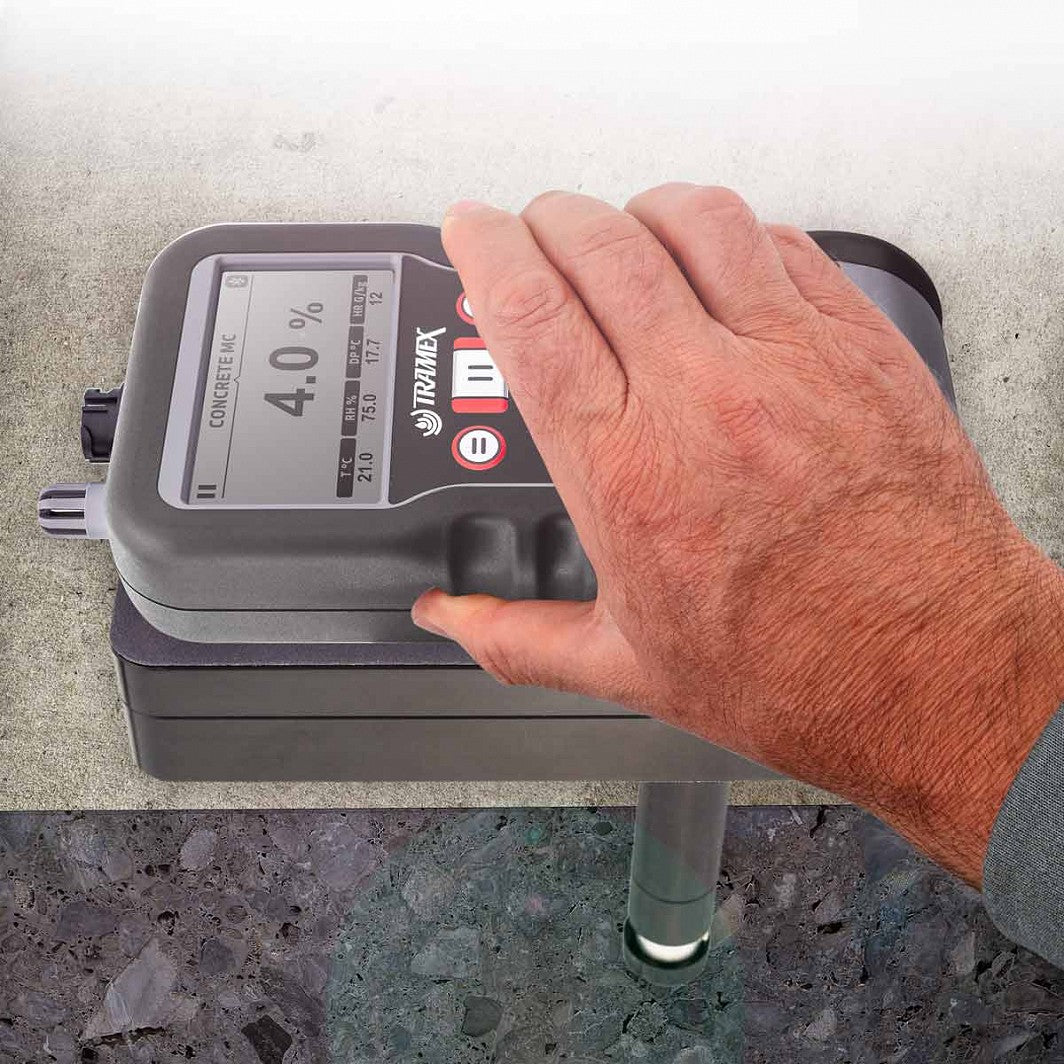

The Tramex Concrete Determinator Tech Kit (CDTK) is a compact, high-precision kit for testing both surface and in-situ moisture content in concrete floors and slabs. Combining the CMEX5 digital moisture meter with the Determinator probe, this unified kit provides gravimetric-based quantitative readings, making it ideal for applications that demand exact measurement down to a depth of 100mm.

Built to comply with ASTM F2659 standards, the CDTK eliminates guesswork by delivering non-destructive surface readings and deep moisture content detection through a single, reusable probe. The rugged carrying case with foam lining ensures tool protection, and Bluetooth connectivity to the Tramex Meters App allows for real-time GeoTagging, result tracking, and report generation.

Key Features:

• Kit Code: CDTK

• Unified Moisture Testing Method (Surface + In-Body)

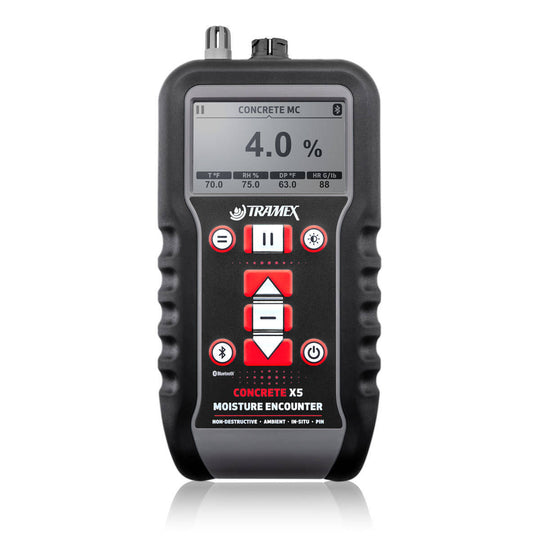

• CMEX5 Non-Destructive Moisture Meter

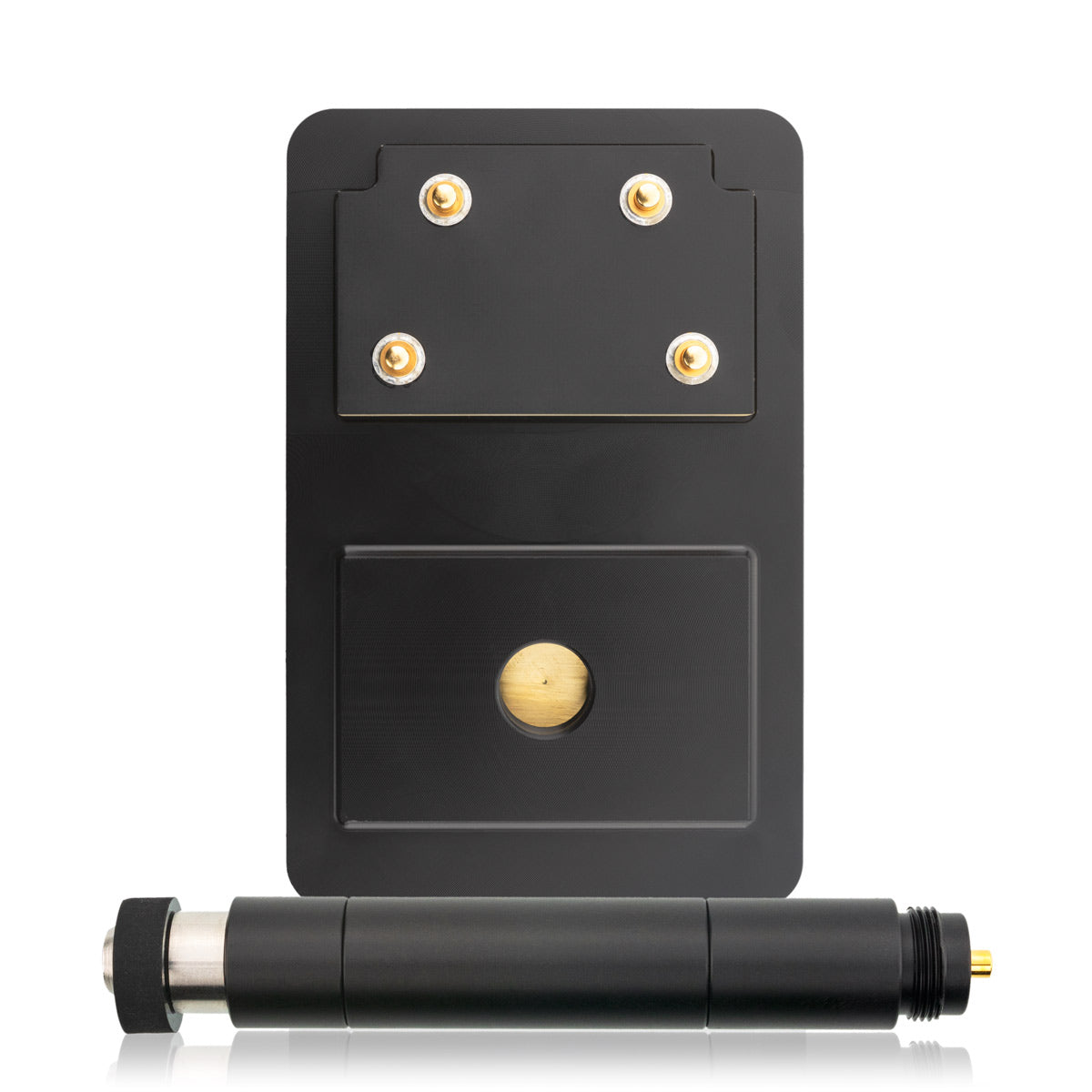

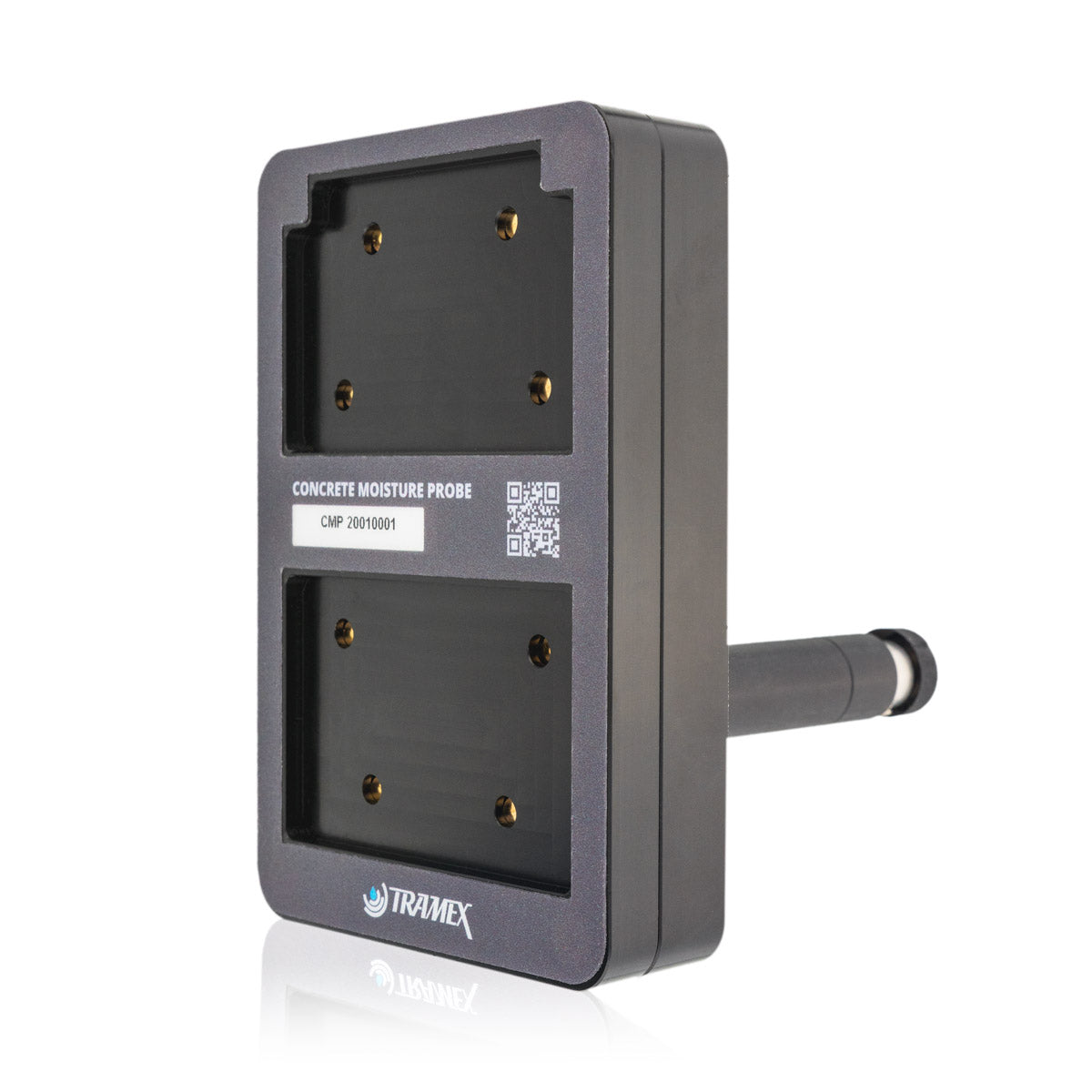

• Reusable In-Situ Determinator Probe (Depth: up to 100mm)

• ASTM F2659 Compliant

• Bluetooth App Support for GeoTagging and Data Sharing

Specifications:

• CMEX5 Depth Penetration: ~20mm

• Moisture Range (CMEX5): 0–6.9% for concrete

• Gypsum Screed Range: 0–12 (comparative)

• CM Equiv Range: Anhydrite 0–2.7, Concrete 0–4.3

• Reference Scale: 0–100

• Relative Humidity (optional probe): 0–99%RH ±2%

• Moisture for Wood (optional): 5–30%

Determinator Probe Depths:

• 3cm for slabs 5–10cm

• 5.7cm for slabs 10–15cm

• 8.3cm for slabs 15–22cm

• 10.8cm for slabs 22–28cm

Kit Size & Weight:

• Dimensions: 43.5cm × 36cm × 14cm

• Weight: 2.95kg

• Power: 2 × AA batteries
