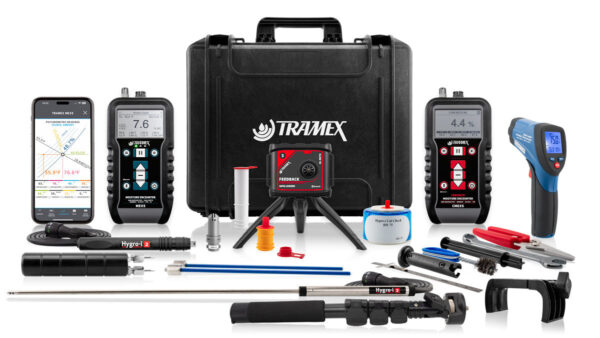

TRAMEX – WDMK-X Water Damage Restoration Master Kit X – Moisture & RH Mapping System

TRAMEX - WDMK-X Water Damage Restoration Master Kit X – Moisture & RH Mapping System

The Tramex WDMK-X is the most comprehensive solution for water damage evaluation and ongoing environmental monitoring in buildings. Equipped with the high-spec MEX5 and CMEX5 meters, this all-in-one kit offers deep and shallow moisture readings in drywall, concrete, wood, plaster, and more—plus in-situ and ambient RH, temperature, dew point, and surface temperature readings.

Designed for professionals needing full-scale moisture mapping and diagnostics, this kit features a built-in hygrometer, infrared thermometer, and Hygro-i2® probes. The Feedback Datalogger enables long-term RH and temperature tracking. With Bluetooth App integration, users can geo-tag results, sync data in real time, and manage reports from mobile devices. Everything is housed in a heavy-duty carry case with custom foam lining for protection.

Key Features:

• Kit Code: WDMK-X

• Multi-depth, non-destructive moisture testing (MEX5 + CMEX5)

• Built-in and in-situ hygrometer functionality with Hygro-i2®

• Feedback Datalogger with 100K+ data point memory

• Built-in IR thermometer for surface temperature and dew point

• Bluetooth App connectivity for reporting, geotagging, and visualization

• Comes with extension handle and heavy-duty carry case

Specifications:

CMEX5 - Concrete Moisture Encounter X5:

• Moisture Content (Concrete): 0 – 6.9%

• CM Equiv Anhydrite/Concrete: 0 – 2.7 / 0 – 4.3

• Gypsum Screed (Comparative): 0 – 12

• Reference Scale: 0 – 100

• Wood via Pin Probes: 5 – 30%

• Penetration Depth: approx. 20mm

• RH Accuracy (via Hygro-i2): 0 – 99%, ±2% @ 25°C

MEX5 - Moisture Encounter X5:

• Depth of Penetration:

  • Shallow: up to 9mm

  • Deep: up to 30mm

• Moisture in Wood (NDT): 0 – 30%

• Building Materials (Comparative): 0 – 100

• Pin Moisture in Wood: 6 – ~50%

• Drywall Pin Readings: 0 – 8.5%

• RH Range (with probe): 0 – 99%

DL-RHTX Feedback Datalogger:

• Memory: 100,000 data points

• Transmission Range: 50m / 165ft line-of-sight

• Logging Interval: 5 min – 1 hour

• Bluetooth: BLE 4.2 + BT5 advertising

Humidity Sensor:

• Range: 0 – 100% RH

• Accuracy: ±1.5% (0–80% RH), ±2.0% (80–99% RH)

• Drift: <0.25% RH/year

Temperature Sensor:

• Range: -40°C to 125°C

• Accuracy: ±0.1°C (20–60°C)

• Drift: <0.03°C/year

Infrared Thermometer - IRT2:

• Temp Range: -50°C to 650°C

• Accuracy: ±1.8°F (20–300°C)

• Spot Ratio: 12:1

• Response Time: 150ms

• Adjustable Emissivity: 0.10 – 1.0

Kit Dimensions & Power:

• Size: 52cm × 48cm × 15cm

• Weight: 5kg

• Power: 5 × AA + 1 × 9V battery
